Custom-made Axial Flux BLDC Micromotors
Mirmex's pioneering technology transforms
conventional electric motors by eliminating the need for copper wire windings.
This progress sets the stage for innovative axial flux electric motors,
announcing a new era, yet at an affordable price.
Custom-made Axial Flux BLDC Micromotors
Mirmex's patented axial-flux stator winding topologies, coupled with our state-of-the-art motor modeling & optimization software, will get the very best out of electromagnetism.
This combination will let you bring innovative axial flux motors to the market. As we are one of the very few motor vendors capable of providing radial and axial-flux motors without copper wires, we can more objectively guide you towards the optimal architecture for your design needs.
Advanced topologies including multi-airgaps are also feasible with zero cogging on every variant.
12 - 300
Diameter [mm]
4 - 60
Thickness [mm]
3000
Power (up to) [W]
2
Torque (up to) [Nm]
50 000
Speed (up to) [rpm]
Benefits
More Compact
Compared to the competition and at equal performance, the Mirmex micromotors are up to 50% smaller.
Best Performance Density
Whatever the application, the Mirmex windings provide a superior copper fill-factor, enhancing motor performance within a specified volume unit.
Custom Made
Diameter, length, speed, voltage…
You have total design freedom.
No more compromise because of limitations dictated by Swiss catalogues, no matter how thick.
Easy Prototyping
Getting custom-made Mirmex micromotors is painless, quick and much more affordable.
10x faster prototype manufacturing.
More Sustainable
The Mirmex technology optimizes micro-motors and make them use less energy.
Up to less than 45% raw materials are also required.
Better Thermal Behavior
A higher fill-factor and the ability to balance all possible sources of losses (thermal, Eddy…) enable to divide thermal losses by a significant factor.
Ambient Resistant
Mirmex axial-flux motors are designed to endure tough conditions like high temperature variations, medical detergents, corrosive atmosphere, dusty environment, ...

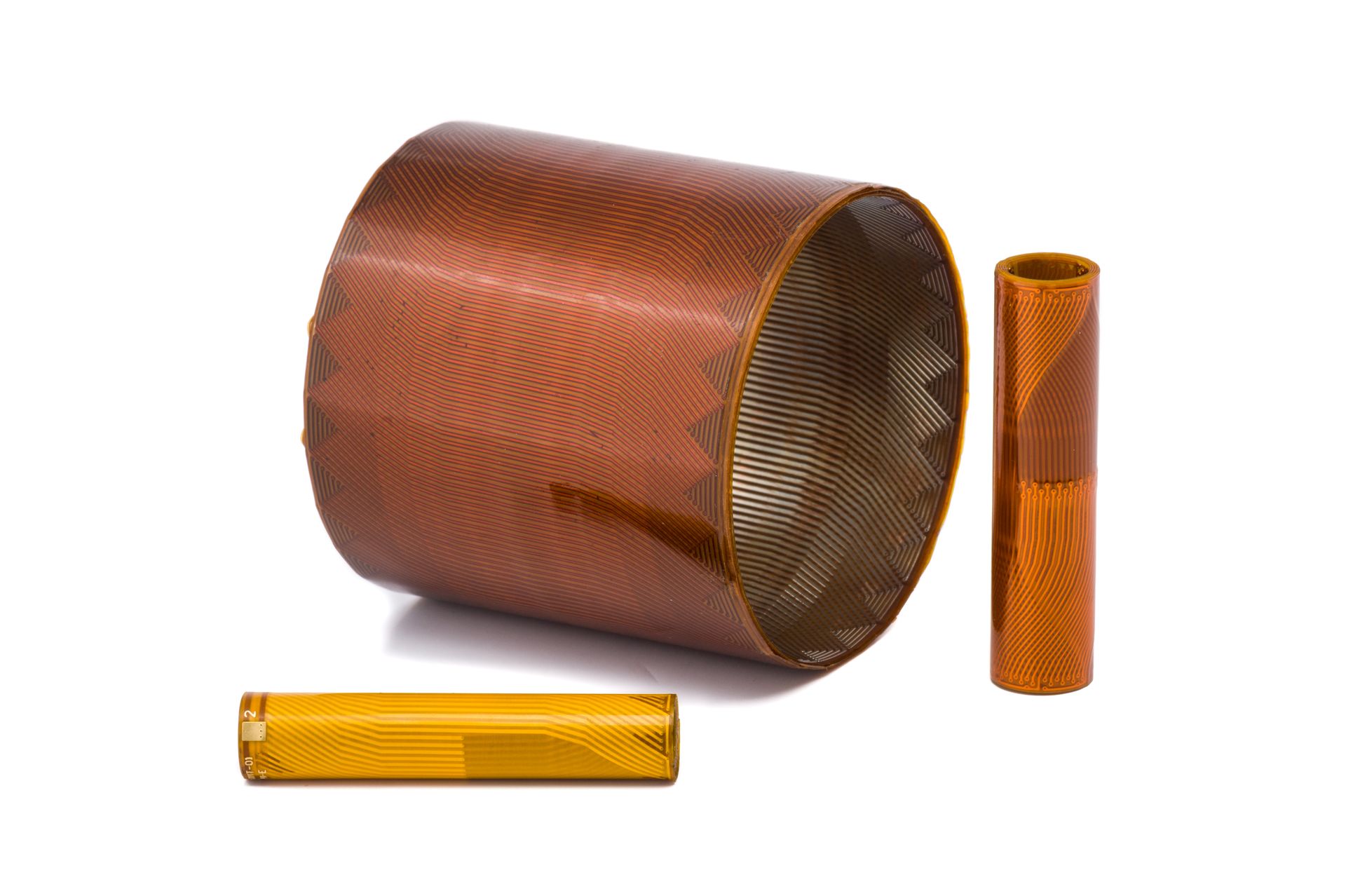

Unique Coil Topologies
Mirmex winding topologies are unachievable with conventional wire-winding methods.
They provide unmatched levels of performance and efficiency.
Axial or Radial
Mirmex is capable of providing both radial and axial-flux motors, both in single and multi-airgaps. We will tell you which version is the best fit for your application.
Axial Flux BLDC Micro motors Application Examples
Space Flywheel
Diameter: 140 mm
Length: 18 mm
Speed: 1000 rpm
Power: 30 W
Torque: 300 mNm
Efficiency: 90%
Key Features
- Super Light Design - Capable of reducing weight while delivering the requested performance.
- Optimized inertia and torque - Efficiency of the equipment.
Active Prosthetic Arms & Legs
Dia: 40 mm
Length: 10 mm
Speed: 12.000 rpm
Power: 36 W
Torque: 30 mNm
Efficiency: 94%
Key Features
- Specific winding topology - Fine tune adjustment of the performance and efficiency.
- Extremely compact design - Easier to integrate in the system.
- Custom made - get an axial flux motor that perfectly fits in your application and at an affordable cost.
Our Project Management Flow...
Scope & Modeling
Prototyping
Testing & Fine Tuning
Mass Production
Customize your own affordable micromotor
